05SHIPPED
KiCadViewer: Unofficial
Check your schematics wherever the project takes you.
05
THE SHORT VERSION
An offline Android viewer for KiCad projects, developed independently of the KiCad project. Open a project folder, browse modern .kicad_sch schematics and hierarchical sheets, then inspect circuit details without changing the source files.
PLATFORMAndroid
STATUSSHIPPED
STACKAndroid · KiCad schematics · Offline viewing
01
Open project folders and browse .kicad_sch files
02
Move between hierarchical schematic sheets
03
Zoom, pan and fit a whole sheet on screen
04

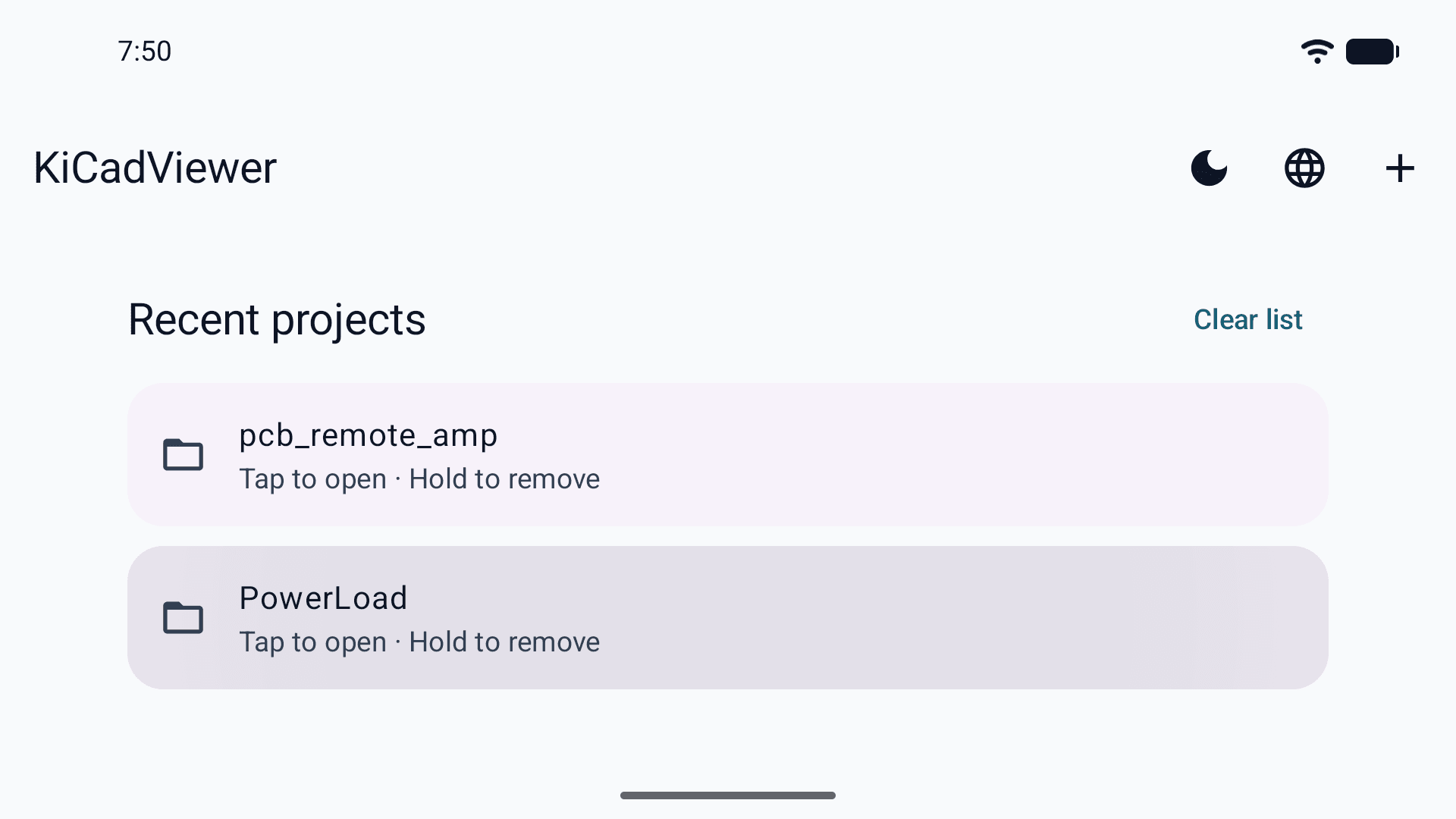

Quickly reopen recently viewed projects
05
Choose light or dark themes and tune schematic colors
06
See a named warning when a symbol cannot be resolved
07
View files offline without editing or saving changes
08
PCB layout viewing is planned and not yet available
SCREENSHOTS
KiCadViewer: Unofficial
Swipe sideways to see the rest
